Template Based PDF Generation from Azure MSSQL

Introduction

SQL Server on Azure enables organizations to use SQL Server in the cloud without having to manage any on-premises hardware. It scales both horizontally and vertically. Developers build apps faster and more efficiently with computing resources that automatically scale based on workload demand.

One of the most common use cases of .Net applications is to generate documents from the MSSQL database. In this article, we'll take a look at how to populate data from the MSSQL database running on Azure into a template and then generates a pdf-format file with EDocGen APIs. So let's get started.

Application Overview

Our goal in this article is to

Extract from an MSSQL database running on the Azure cloud data in JSON format using a native query.

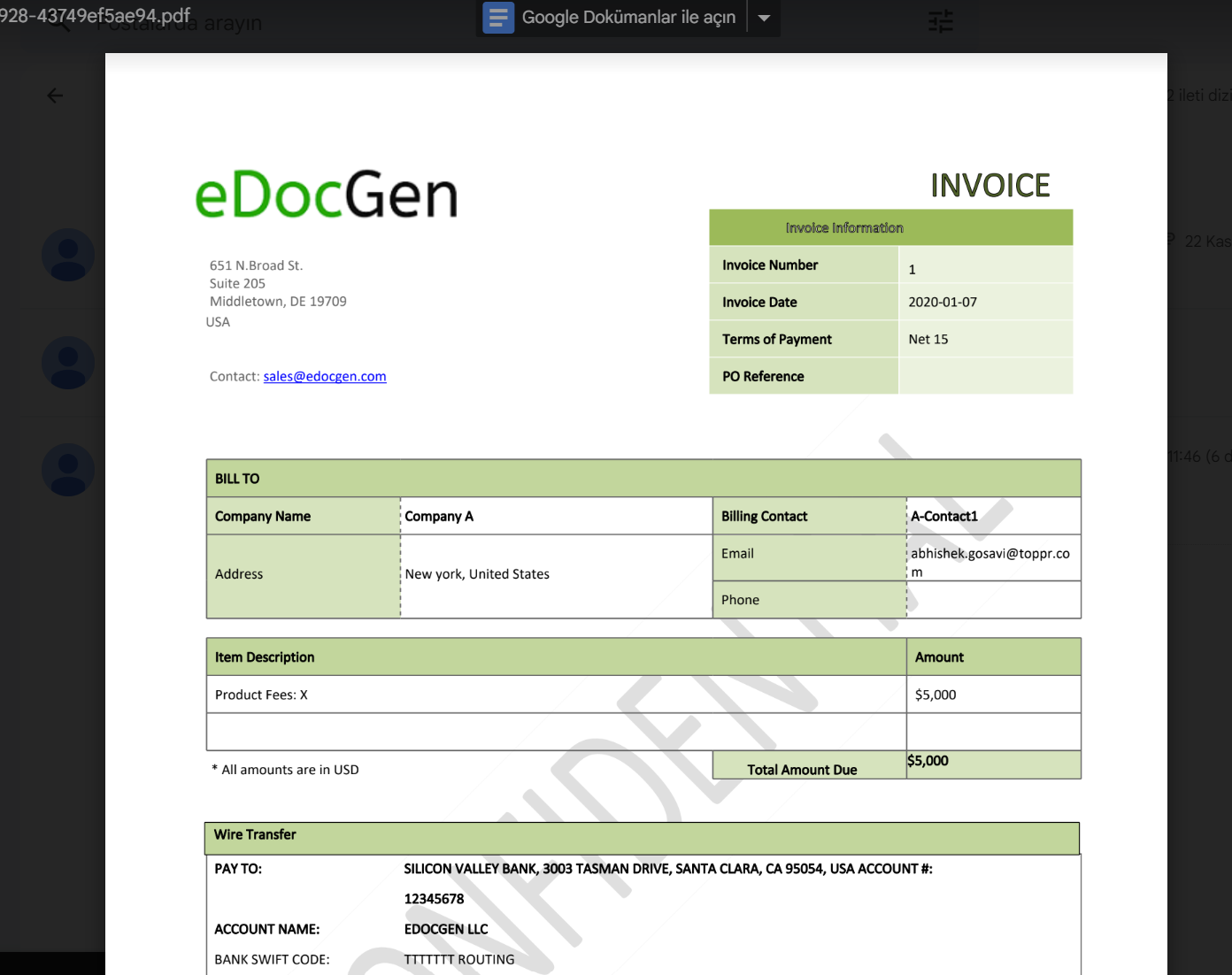

Generate a pdf file with an invoice template.

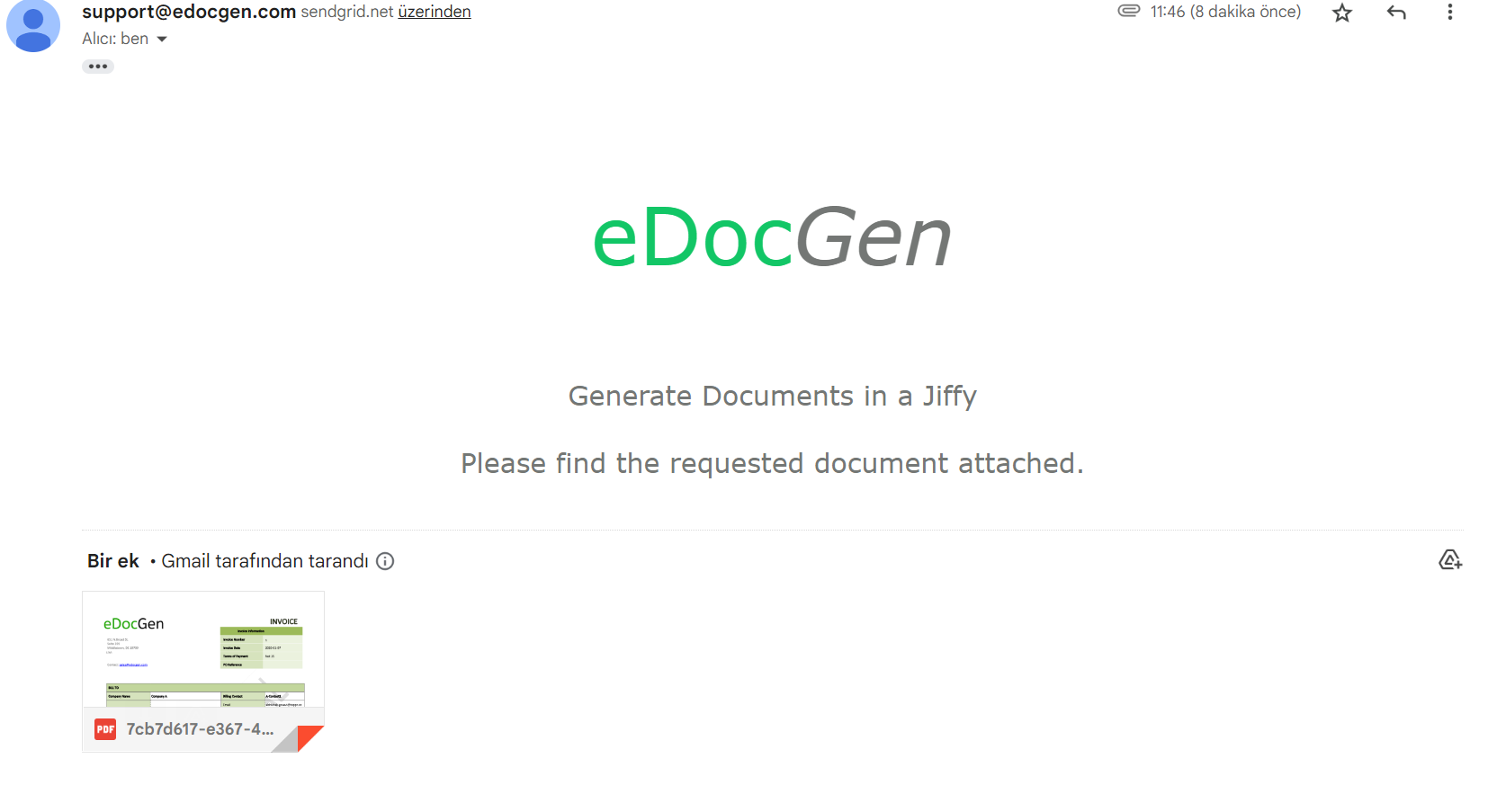

We then will send the generated pdf file to the targeted email address.

Let's get started.

Project Setup

Azure Firewall Configuration

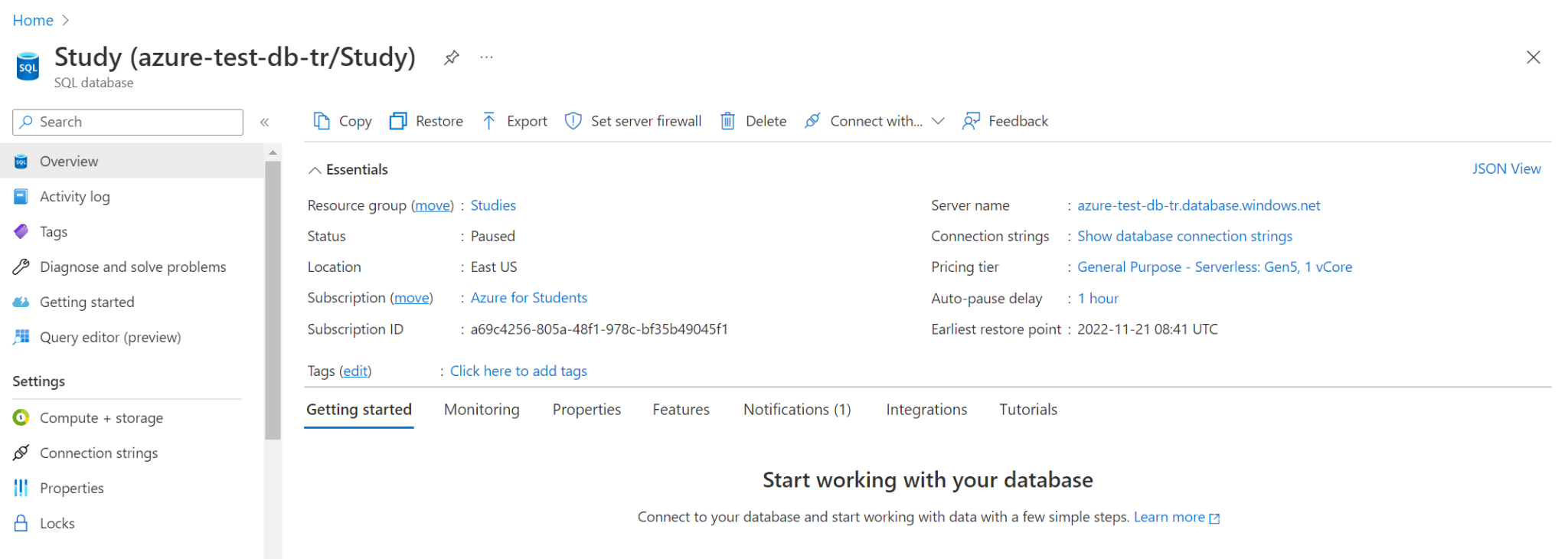

If we want to connect to a database on Azure through an Asp.Net Core application, we will first need to configure the Network settings on Azure. For this, let's choose the database that we created earlier on Azure.

Click the 'Set firewall settings' button.

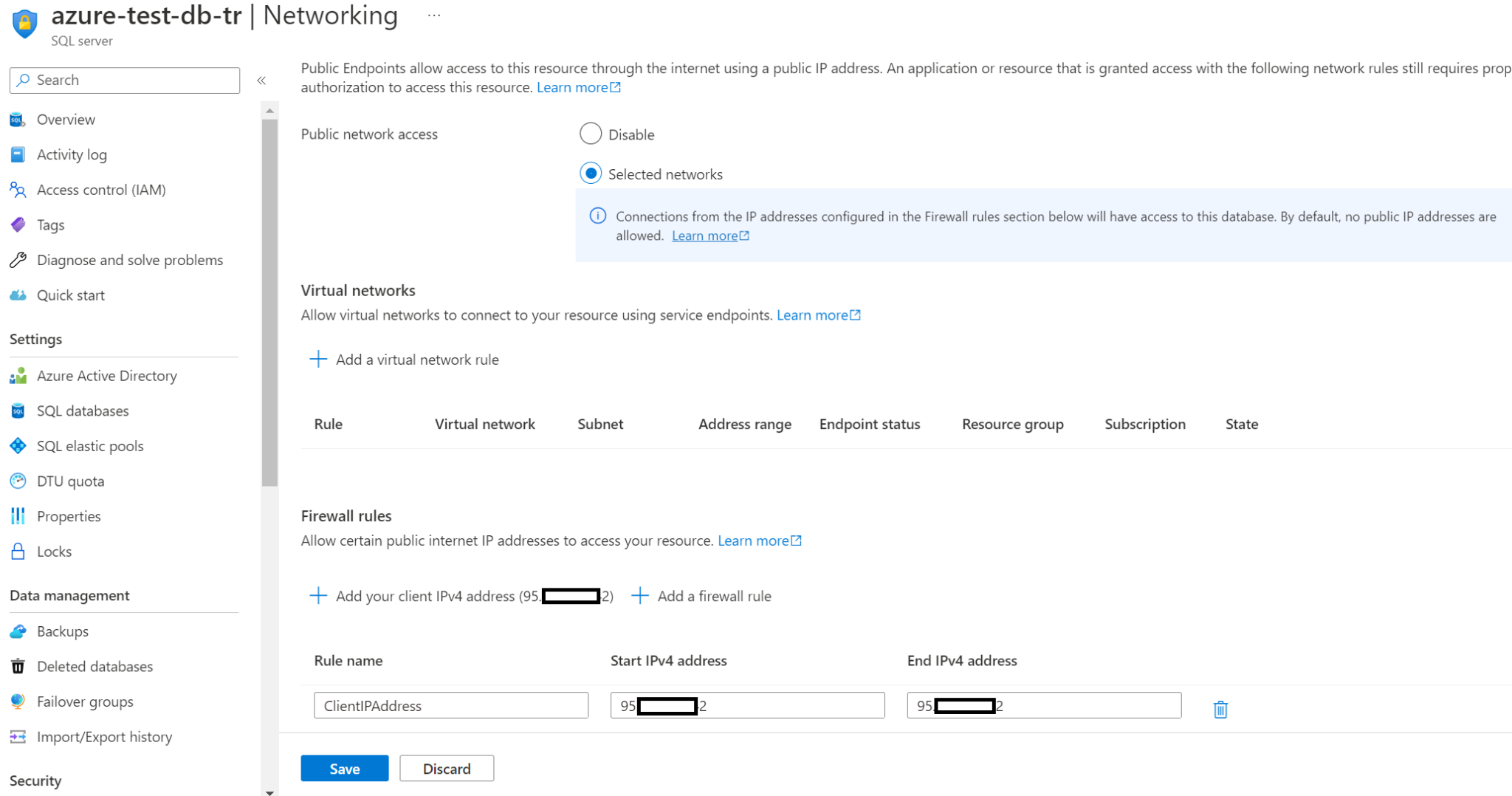

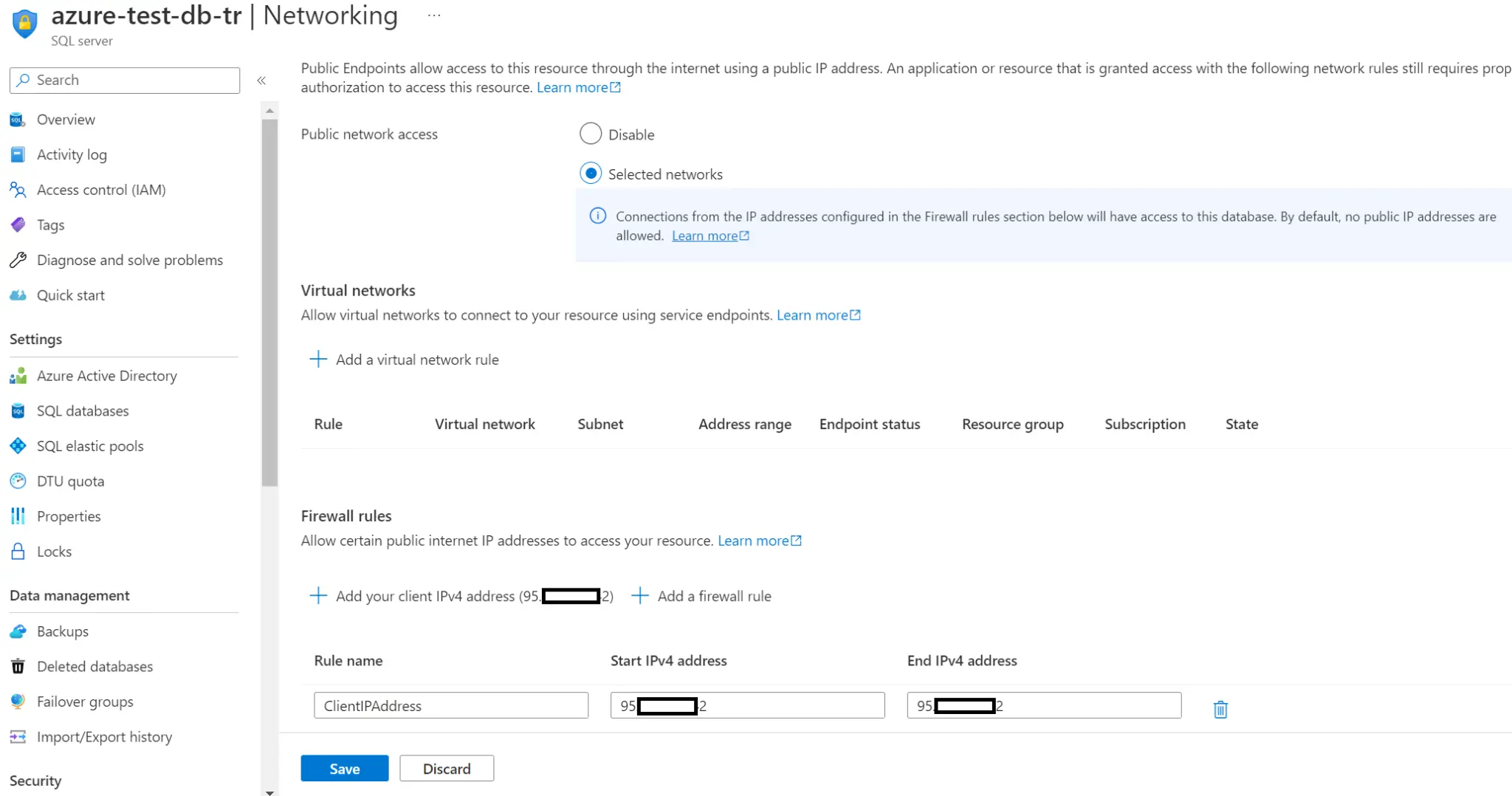

We will do our operations in the 'public access' section on the page that opens. Let's set the 'public network access' option from Disable to Selected Networks. In this way, we can provide access to our MSSQL database from the IP address we have determined.

Then, under the 'Firewall rules' heading, you will see your local IP address as an example. In this example, we will allow access to the database only from our machine. Therefore, let's click the 'Add your client IPv4 address {(IP_ADDRESS)} button and affect our IP address for access authorization. Then press the 'Save' button and save the settings.

Database Connection

Now, let's move on to the code side and continue our operations.

On the code side, let's create a class called 'InvoiceRepository'. This class will be responsible for the connection and queries to the MSSQL database running in Azure.

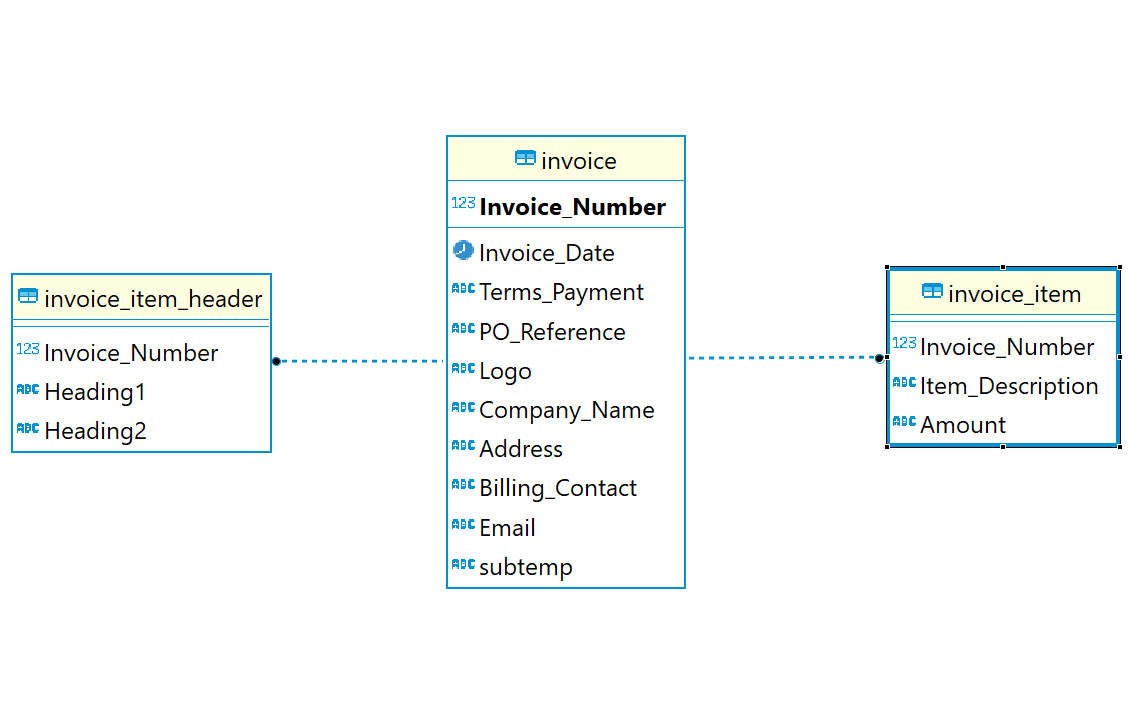

Take a look at the below table structure. To create the PDF files, we will populate the template with information from these tables.

We use the native SQL query with “JSON AUTO” to pull the data in JSON format.


SELECT
i.Invoice_Number ,
i.Invoice_Date ,
i.Terms_Payment ,
i.Company_Name  ,
i.Billing_Contact ,
i.Address ,
i.Logo ,
i.Email ,
i.subtemp ,
(SELECT iih.Heading1 , iih.Heading2
 FROM invoice_item_header iih
 WHERE iih.Invoice_Number = i.Invoice_Number
 FOR JSON AUTO) As ITH,
(SELECT ii.Item_Description, ii.Amount
 FROM invoice_item ii
 WHERE ii.Invoice_Number = i.Invoice_Number
 FOR JSON AUTO) As IT
FROM invoice i
FOR JSON AUTO

This query outputs the following JSON.


[
  {
    "Invoice_Number": 1,
    "Invoice_Date": "2020-01-07",
    "Terms_Payment": "Net 15",
    "Company_Name": "Company A",
    "Billing_Contact": "A-Contact1",
    "Address": "New york, United States",
    "Logo": "62b83ddcd406d22dc7516b53",
    "Email": "[email protected]",
    "subtemp": "62c85b97f156ce4fbdb01bcb",
    "ITH": [
      {
        "Heading1": "Item Description",
        "Heading2": "Amount"
      }
    ],
    "IT": [
      {
        "Item_Description": "Product Fees: X",
        "Amount": "5,000"
      }
    ]
  }
]

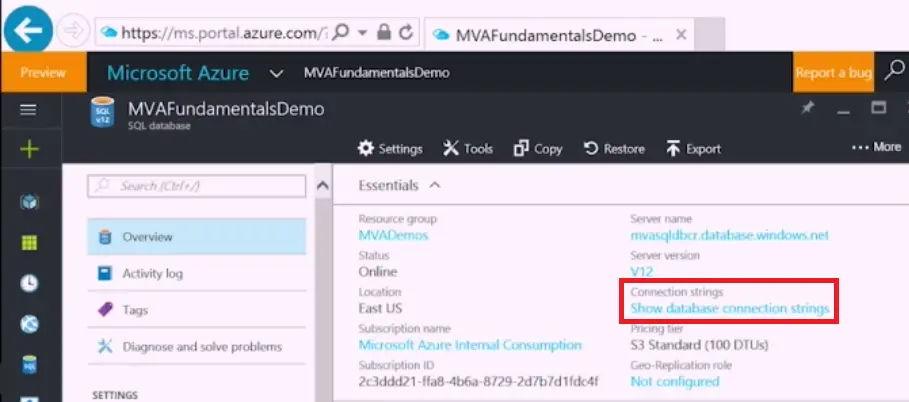

Log into Azure Portal > click on corresponding SQL Database > Overview > click 'Show database connection strings' under Connection strings':

InvoiceRepository

We use these details to retrieve the data in JSON format from our SQL server with the above query.


using System.Data.SqlClient;
using System.Text;

namespace TemplateBasedApplication.Repository
{
    public class InvoiceRepository
    {
        private readonly string _connectionString = "Server=tcp:azure-test-db-tr.database.windows.net,1433;" +
            "Initial Catalog=Study;Persist Security Info=False;User ID=root;Password={your_password_here};" +            "MultipleActiveResultSets=False;Encrypt=True;TrustServerCertificate=False;Connection Timeout=30;";

        public string getInvoice()
        {

            using (SqlConnection connection = new SqlConnection(_connectionString))
            {
                string query = "SELECT " +
                    "i.Invoice_Number ," +
                    "i.Invoice_Date ," +
                    "i.Terms_Payment ," +
                    "i.Company_Name  ," +
                    "i.Billing_Contact ," +
                    "i.Address ," +
                    "i.Logo ," +
                    "i.Email ," +
                    "i.subtemp , " +
                    "(SELECT iih.Heading1 , iih.Heading2 " +
                        "FROM invoice_item_header iih " +
                        "WHERE iih.Invoice_Number = i.Invoice_Number " +
                        "FOR JSON AUTO) As ITH," +
                    "(SELECT ii.Item_Description, ii.Amount " +
                        "FROM invoice_item ii " +
                        "WHERE ii.Invoice_Number = i.Invoice_Number " +
                        "FOR JSON AUTO) As IT " +
                    "FROM invoice i " +
                    "FOR JSON AUTO";

                using (SqlCommand command = new SqlCommand(query, connection))
                {
                    connection.Open();
                    var jsonResult = new StringBuilder();
                    var reader = command.ExecuteReader();
                    while (reader.Read())
                    {
                        jsonResult.Append(reader.GetValue(0).ToString());
                    }

                    return jsonResult.ToString();
                }
            }
        }
    }
}

Document Database Service

After completing our database operations, we will now move on to the service layer of the application. In this layer, the data obtained from the database will be saved as a json file first. Then the saved json format file will be sent to EDocGen's '/generate/bulk' service with the necessary information. This JSON data will populate the template, we created before and produces output in PDF format.

In the next step, we will send the generated pdf-format file to the email address listed in the JSON file.

The structure of the '/generate/bulk' service we will request is as follows.

Url	https://app.edocgen.com/api/v1/document/generate/bulk
Method	HTTP POST
Parameters	● documentId(string, formData): id of the template ● format(string, formData) : output format Docx or PDF. Default Docx ● outputFileName(string, formData): file name for the output file ● inputFile(file, formData): file containing marker values. JSON, XLSX and XML supported
Headers	● x-access-token(string, header): authorization header as obtained by calling login ● Content-Type(string header): multipart/form-data


           void downloadBulkUsingDB()
        {
            String format = "pdf";
            String dbVendor = "mysql";
            String dbUrl = "tcp:azure-test-db-tr.database.windows.net:1433/sql6511576/sdtest";
            String dbPassword = "u8M7IYAq7a";
            String dbQuery = "select * from sdtest";
            String dbLimit = "100";
            String downloadedFileExt = ".zip";
            Int32 MAX_RETRY = 50;
            Int32 RETRY = 0;
            String documentId = "62f063426844520f75344091";

            String FileName = Guid.NewGuid().ToString();
            String keyToFileName = "";

            try
            {
                var client = new RestClient("https://app.edocgen.com");
                var request = new RestRequest("/api/v1/document/generate/bulk", Method.Post);
                request.AddHeader("Content-Type", "multipart/form-data");
                request.AddHeader("x-access-token", token);
                request.AlwaysMultipartFormData = true;

                request.AddParameter("outputFileName", FileName);
                request.AddParameter("dbVendor", dbVendor);
                request.AddParameter("dbUrl", dbUrl);
                request.AddParameter("dbLimit", dbLimit);
                request.AddParameter("dbPassword", dbPassword);
                request.AddParameter("dbQuery", dbQuery);
                request.AddParameter("documentId", documentId);
                request.AddParameter("format", format);
                if (!string.IsNullOrEmpty(keyToFileName)) {
                  request.AddParameter("keyToFileName", keyToFileName);
                }

                Console.WriteLine("Fetching data from MySQL Database");
                var response = client.Execute(request);
                var obj = JsonNode.Parse(response.Content);


                String ouputID = checkOutputGenerated(FileName, format, downloadedFileExt);

                while (ouputID == "" && RETRY < MAX_RETRY)
                {
                    ouputID = checkOutputGenerated(FileName, format, downloadedFileExt);
                    RETRY++;
                }
                if (ouputID == "")
                {
                    Console.WriteLine("No output generated at edocgen after several retries!!! Fatal error");
                    return;
                }
                else
                {
                    downloadOutput(ouputID, FileName, downloadedFileExt);
                }

            }
            catch (Exception ex)
            {
                Console.WriteLine(ex);
            }

        }

DocumentDatabaseService


using RestSharp;
using System;
using System.IO;
using System.Threading.Tasks;
using TemplateBasedApplication.Exceptions;
using TemplateBasedApplication.Helper.Constants;
using TemplateBasedApplication.Models;
using TemplateBasedApplication.Repository;

namespace TemplateBasedApplication.Services
{
    public class DocumentDatabaseService
    {
        private readonly CacheService cacheService;
        private readonly EmailService emailService;
        private readonly InvoiceRepository invoiceRepository;

        public DocumentDatabaseService(CacheService cacheService, EmailService emailService, InvoiceRepository invoiceRepository)
        {
            this.cacheService = cacheService;
            this.emailService = emailService;
            this.invoiceRepository = invoiceRepository;
        }

        public async Task executeDocumentFromDatabaseProcess(string email)
        {
            try
            {
                FileRequestModel fileRequestModel = createFileRequestModel();
                generateJsonFileFromDatabase(fileRequestModel);
                await generateDocument(fileRequestModel);
                await emailService.processOutput(fileRequestModel, email);
            }
            catch (FileGenerationException ex)
            {
                Console.WriteLine(ex.Message);
                throw new FileGenerationException("Error occurred while generating document");
            }
        }

        private async Task generateDocument(FileRequestModel fileRequestModel)
        {
            var client = new RestClient("https://app.edocgen.com");
            var request = new RestRequest("/api/v1/document/generate/bulk", Method.Post);
            request.AddHeader("Content-Type", "multipart/form-data");
            request.AddHeader("x-access-token", fileRequestModel.token);
            request.AddParameter("documentId", FileGenerationConstants.DEFAULT_TEMPLATE_ID);
            request.AddFile("inputFile", fileRequestModel.filePath);
            request.AddParameter("outputFileName", fileRequestModel.fileName);
            request.AddParameter("format", FileGenerationConstants.PDF_OUTPUT_FORMAT);

            var response = await client.ExecuteAsync(request);

            validateResponse(response);
            return response;
        }

        private void validateResponse(RestResponse response)
        {
            if (isNotResponseValid(response))
                throw new InvalidServiceResponseException($"Error occurred as a result of service call: {response.ResponseUri} , " +
                    $"message: {response.ErrorMessage} , " +
                    $"exception: {response.ErrorException}");
        }

        private bool isNotResponseValid(RestResponse response)
        {
            return !(response != null && response.StatusCode == System.Net.HttpStatusCode.OK);
        }

        private FileRequestModel createFileRequestModel()
        {
            var token = cacheService.Get(RedisConstant.PDF_GENERATOR_TOKEN);
            var fileName = Guid.NewGuid().ToString();
            var filePath = @"./Sources/" + fileName + ".json";

            FileRequestModel fileRequestModel = new FileRequestModel()
            {
                token = token,
                filePath = filePath,
                fileName = fileName
            };

            return fileRequestModel;
        }

        private void generateJsonFileFromDatabase(FileRequestModel fileRequestModel)
        {
            string invoice = invoiceRepository.getInvoice();
            saveJson(fileRequestModel, invoice);
        }

        private void saveJson(FileRequestModel fileRequestModel, string data)
        {
            File.WriteAllText(@"./Sources/" + fileRequestModel.fileName + ".json", data);
        }
    }
}

Output Process

We obtained a json format output by populating the data in json format we obtained from the database in the template we want. Now it remains to send this pdf file to the email address received from the user. In this process, we will be implementing the step.

In the first step, we will get the Id value of the file we created by making a request to EDocGen's '/output/name/{filename}' service.

In the second step, we will send the Id value and the user's email address information to EDocGen's '/output/email' service. Thus, the file in pdf format we have created will be sent to the user's email address.

The structure of the '/output/name/{filename}' service that we will use to obtain the Id information of the file is as follows.

Url

https://app.edocgen.com/api/v1 /api/v1/output/name/{output_file_name}

Method

HTTP GET

Headers

● x-access-token(string, header): authorization header as obtained by calling login

● Content-Type(string header): multipart/form-data

The structure of the '/output/email' service we will use to send emails is simply like this

Url	https://app.edocgen.com/api/v1 /api/v1/output/email
Method	HTTP POST
Body	{ “outId”:”string”, “emailId”:”string” }
Headers	● x-access-token(string, header): authorization header as obtained by calling login ● Content-Type(string header): multipart/form-data

EmailService


using Newtonsoft.Json;
using RestSharp;
using System;
using System.Linq;
using System.Threading;
using System.Threading.Tasks;
using TemplateBasedApplication.Exceptions;
using TemplateBasedApplication.Helper.Constants;
using TemplateBasedApplication.Models;
using TemplateBasedApplication.Models.Dto;

namespace TemplateBasedApplication.Services
{
    public class EmailService
    {
        public async Task processOutput(FileRequestModel fileRequestModel, string email)
        {
            try
            {
                var outputId = getOutputId(fileRequestModel);

                var client = new RestClient("https://app.edocgen.com");
                var request = new RestRequest("/api/v1/output/email", Method.Post);
                request.AddHeader("Content-Type", "application/json");


                request.AddHeader("x-access-token", fileRequestModel.token);

                request.AddJsonBody(
                                new
                                {
                                    outId = outputId,
                                    emailId = email
                                });
                var response = await client.ExecuteAsync(request);
                validateResponse(response);
            }
            catch (Exception ex)
            {
                throw new ProcessOutputException(ex.Message);
            }
        }

        private string getOutputId(FileRequestModel fileRequestModel)
        {
            Thread.Sleep(10000);
            var client = new RestClient("https://app.edocgen.com");
            var requestUrl = $"/api/v1/output/name/{fileRequestModel.fileName}.{FileGenerationConstants.PDF_OUTPUT_FORMAT}";

            var request = new RestRequest(requestUrl, Method.Get);
            request.AddHeader("Content-Type", "multipart/form-data");
            request.AddHeader("x-access-token", fileRequestModel.token);

            var response = client.Execute(request);
            validateResponse(response);

            var outputModelDto = JsonConvert.DeserializeObject(response.Content);
            validateOutputResponse(outputModelDto);
            return outputModelDto.output[0]._id;
        }

        private void validateResponse(RestResponse response)
        {
            if (isNotResponseValid(response))
                throw new InvalidServiceResponseException($"Error occurred as a result of service call: {response.ResponseUri} , " +
                    $"message: {response.ErrorMessage} , " +
                    $"exception: {response.ErrorException}");
        }

        private bool isNotResponseValid(RestResponse response)
        {
            return !(response != null && response.StatusCode == System.Net.HttpStatusCode.OK);
        }

        private void validateOutputResponse(OutputModelDto outputModelDto)
        {
            if (isNotOutputResponseValid(outputModelDto))
                throw new InvalidOutputResponseException("Output model is not valid");
        }

        private bool isNotOutputResponseValid(OutputModelDto outputModelDto)
        {
            return !(outputModelDto != null && outputModelDto.output.Any());
        }
    }
}

Document API

In this layer, requests from the user will be handled. In a class named 'DocumentController' we can paste the following codes.

DocumentController


using Microsoft.AspNetCore.Mvc;
using System.Threading.Tasks;
using TemplateBasedApplication.Models.Dto;
using TemplateBasedApplication.Services;

namespace TemplateBasedApplication.Controllers
{
    [Route("api/[controller]/generate")]
    [ApiController]
    public class DocumentController : ControllerBase
    {
        private readonly AuthenticationService authenticationService;
        private readonly DocumentDatabaseService documentDatabaseService;

        public DocumentController(AuthenticationService authenticationService, DocumentDatabaseService documentDatabaseService)
        {
            this.authenticationService = authenticationService;
            this.documentDatabaseService = documentDatabaseService;
        }

        [HttpPost]
        [Route("file/{email}")]
        public async Task generateDocumentFromDatabase(string email)
        {
            await authenticationService.setCredential();
            await documentDatabaseService.executeDocumentFromDatabaseProcess(email);
            return new ResponseModel()
            {
                isSuccess = true,
                statusCode = 200,
                message = $"The file sent to {email} address. "
            };
        }
    }
}

Test

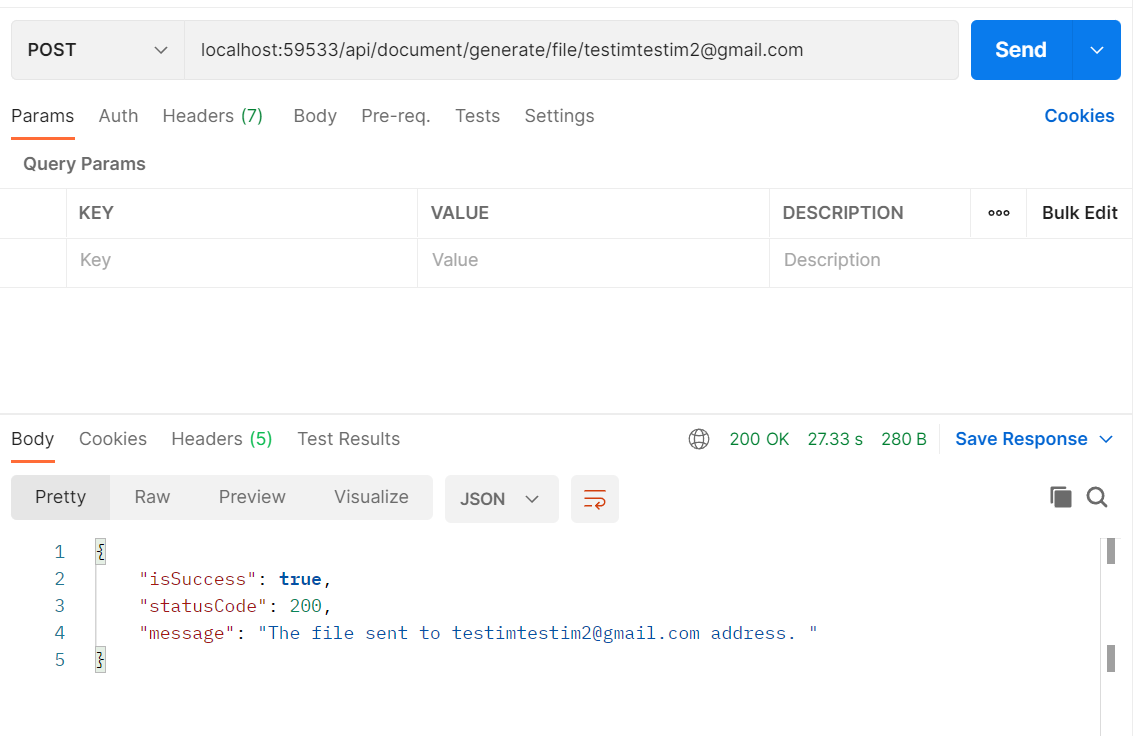

We are now in the testing phase. We will perform our tests on Postman. We will send a HTTP POST request to the path ' /api/document/generate/file/{email}'.

Now let's check our email address and open the generated file.

Conclusion

In this article, we mentioned how we get data from an MSSQL database on Azure in JSON format, populate a template with this data, and then generate it in pdf format. Finally, we talked about how to send the file we created in pdf format as an email.

We have come to the end of this article. Be sure to visit to discover many more services that EDocGen provides.

Generate Documents from Azure SQL Server
